Frequency bands:- 3dBi, Eff: > 41% @617-960MHz- 4.5dBi, Eff: > 62% @1710-2690MHz- 2.5dBi, Eff: > 62% @3300-3800MHzVSWR < 3Vertical polarizationImpedance:50 Ω(Typ.)SMA Male connectorDimensions : L x W : 5.31" x 0.79" (135 x 20 mm)

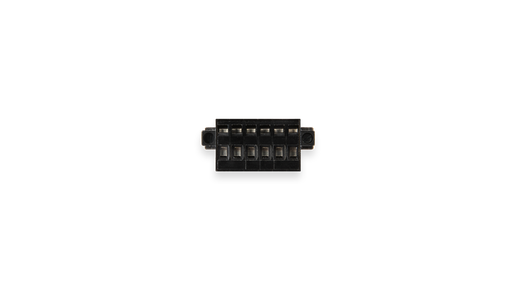

External Terminal Block
6 Pins 3.5mm-Pitch Terminal Block

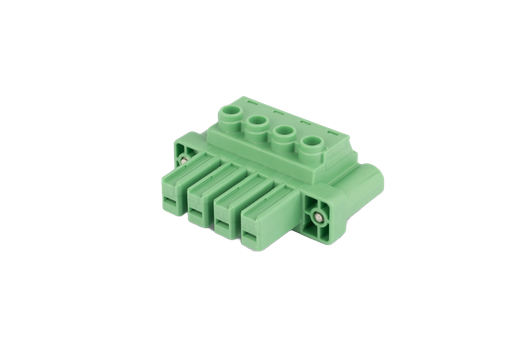

Terminal Block for PSW-24-250-RUG
4 Pins 762mm-Pitch

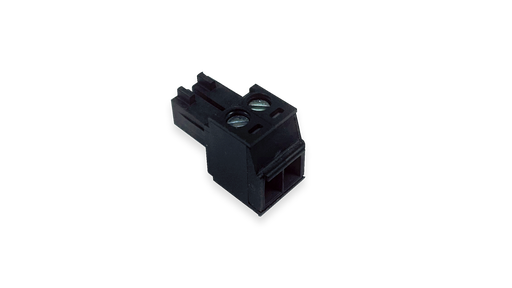

External Connector Terminal Block (Black)
2 Pins 3.5mm-pitch
For:

MAX BR1 Mini
MAX BR1 M2M

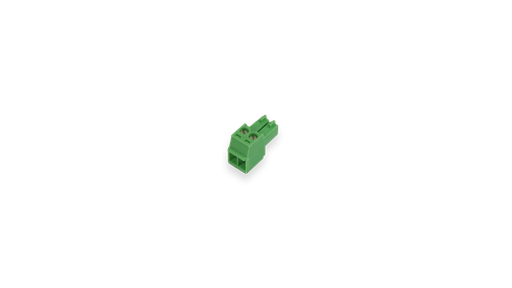

External Terminal Block (green color)
2 Pins 3.5mm-Pitch
For MAX BR1 M2M

Terminal Block
4 Pins 3.5mm-Pitch
For MAX BR1

24V PSU for the PoE input
Screen reader support enabled.
Compatible with PoE+ Activation Kit (ACW-622)

Activate 10x Virtual WAN on

B310X
B380X
B580X
B710
B2500 EC
MBX
MBX Mini
SDX
SDX Pro

Expansion Module with 1x LTE-A Pro (CAT-20) modem
Compatible with Balance 20X / 380X & 580X (Exchangeable module cover included)
4x Cellular Antennas (ACW-234) are included.

* China & HK TD LTE are excluded.

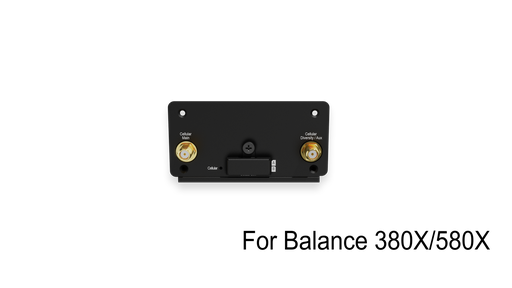

Expansion Module with 1x LTE-A Pro (Global* / CAT-12) modem
Compatible with Balance 20X / 380X & 580X (Exchangeable module cover included)
2x Cellular Antennas (ACW-234) are included.
Specification

Expansion Module with 4x LTEA (APAC & EMEA / CAT-12) modems
Compatible with EPX, SDX, SDX Pro
Specification

*Antenna is not included. To achieve the best performance we recommend using 8x Cellular Antennas (ACW-234) and 1x GPS Antenna (ACW-232).

Expansion Module with 4x LTEA (Global/ CAT-12) modems
Compatible with EPX, SDX, SDX Pro
Specification

*Antenna is not included. To achieve the best performance we recommend using 8x Cellular Antennas (ACW-234) and 1x GPS Antenna (ACW-232).

Expansion Module with 1x 5G modem
Compatible with Balance 310X .
Specification

Expansion Module with 1x 5G modem
Compatible with Balance 310X
Specification

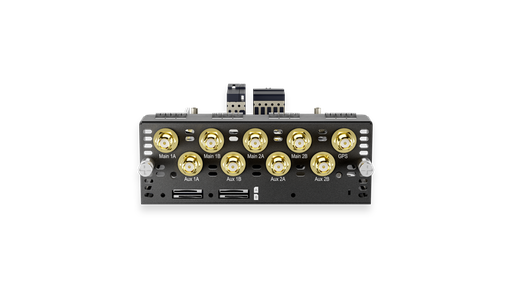

Expansion Module with 2x LTEA (CAT-20) modems
Compatible with EPX, SDX, SDX Pro
US Carrier Certifications: T-Mobile, Verizon
Specification

*Antenna is not included. To achieve the best performance we recommend using 8x Cellular Antennas (ACW-234) and 1x GPS Antenna (ACW-232).

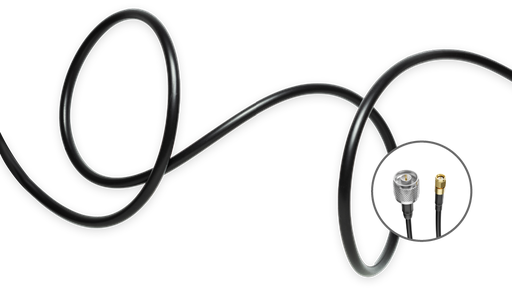

Extension coax cable
N-type male to SMA male connector
30ft / 9m

Extension coax cable
N-type male to SMA male connector
1ft / 0.3m
4-Pack Set

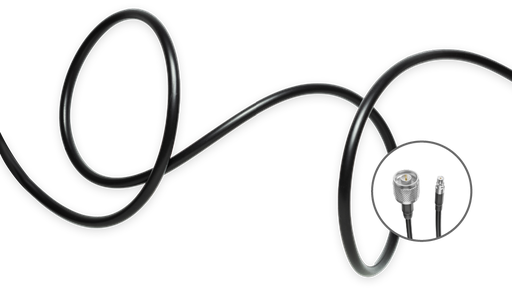

Extension coax cable
N-type male to QMA female connector,
15ft / 4.5m

Extension coax cable
N-type female to N-type male connector
30 ft / 9m

Enable Edge Computing (Content Hub & Docker (requires LCD Module))
compatible with EPX
